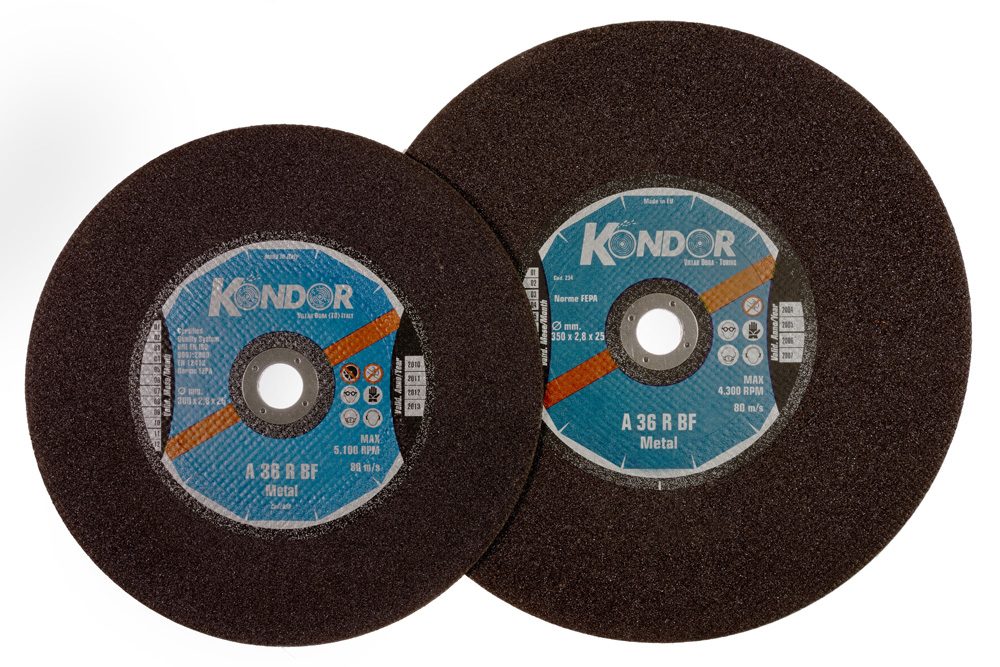

Depressed centre reinforced cutting discs for portable machines – Iron and steel – Specification T42BF11 rows
| Size Ø × T × Ø (mm) |
A 36 R |
A30S (Ø76 = A 46 S) |
A24 S |
Pack (pcs) |
| DT 76 x 3.2 x 10 |
– |
● |
– |
80 |
| DT 100 x 3.2 x 16 |
– |
● |
– |
50 |
| DT 115 x 2.5 x 22 |
– |
– |
● |
50 |
| DT 115 x 3.2 x 22 |
● |
● |
● |
50 |
| DT 125 x 2.5 x 22 |
– |
– |
● |
50 |
| DT 125 x 3.2 x 22 |
● |
● |
● |
50 |
| DT 150 x 3.2 x 22 |
– |
● |
– |
50 |
| DT 180 x 2.5 x 22 |
– |
– |
● |
25 |
| DT 180 x 3.2 x 22 |
● |
● |
● |
25 |
| DT 230 x 2.5 x 22 |
– |
– |
● |
25 |
| DT 230 x 3.2 x 22 |
● |
● |
● |
25 |
A36R: soft grade, fast and cool cutting, excellent for alloy steels and metals that tend to clog the wheel. A30S: medium/hard grade, good cutting performance and life, general-purpose use on iron and steels. A24S: hard grade, long life even under the most demanding conditions.
Cast iron, stainless steel and non-ferrous metals – Specification T42BF10 rows
| Size Ø × T × Ø (mm) |
Cast iron X 24 R |
Stainless* 9A 30 S |
Alu A 46 N |
Pack (pcs) |
| DT 100 x 3.2 x 16 |
– |
● |
– |
50 |
| DT 115 x 2.5 x 22 |
– |
● |
– |
50 |
| DT 115 x 3.2 x 22 |
– |
● |
● |
50 |
| DT 125 x 2.5 x 22 |
– |
● |
– |
50 |
| DT 125 x 3.2 x 22 |
– |
● |
● |
50 |
| DT 150 x 3.2 x 22 |
– |
● |
– |
50 |
| DT 180 x 2.5 x 22 |
– |
● |
– |
25 |
| DT 180 x 3.2 x 22 |
● |
● |
● |
25 |
| DT 230 x 2.5 x 22 |
– |
● |
– |
25 |
| DT 230 x 3.2 x 22 |
● |
● |
● |
25 |
* = Iron- and sulphur-free certification available. X24R: cutting cast iron in general, also suitable for non-ferrous metals. 9A30S: cutting stainless steels, suitable for the nuclear and food industries. A46N: cutting aluminium and its alloys.
High-performance zirconia cutting discs – Specification T42BF6 rows
| Size Ø × T × Ø (mm) |
00A 24 T |
Pack (pcs) |
| DT 115 x 3.2 x 22 |
● |
50 |
| DT 125 x 3.2 x 22 |
● |
50 |
| DT 180 x 2.5 x 22 |
● |
25 |
| DT 180 x 3.2 x 22 |
● |
25 |
| DT 230 x 2.5 x 22 |
● |
25 |
| DT 230 x 3.2 x 22 |
● |
25 |
00A24T: long life for specialist applications on alloy and stainless steels.
Building materials and stone – Specification T42BF6 rows
| Size Ø × T × Ø (mm) |
C 36 R |
C 30 S |
Pack (pcs) |
| DT 100 x 3.2 x 16 |
– |
● |
50 |
| DT 115 x 3.2 x 22 |
– |
● |
50 |
| DT 125 x 3.2 x 22 |
– |
● |
50 |
| DT 150 x 3.2 x 22 |
– |
● |
50 |
| DT 180 x 3.2 x 22 |
● |
● |
25 |
| DT 230 x 3.2 x 22 |
● |
● |
25 |
C36R: soft grade, cutting stone, granite and refractory materials. C30S: medium/hard grade, cutting building materials in general.
Reinforced flat cut-off wheels – Specification T41BF8 rows
| Size Ø × T × Ø (mm) |
Steel A 30 S |
Steel A24S |
Stainless* 9A 30 S |
Zirconia 00A 24 T |
Stone C 30 S |
Pack (pcs) |
| T2E 100 x 2.5 x 16 |
● |
– |
● |
– |
● |
60 |
| T2E 115 x 2.5 x 22 |
– |
● |
● |
● |
● |
60 |
| T2E 125 x 2.5 x 22 |
– |
● |
● |
● |
● |
60 |
| T2E 150 x 2.5 x 22 |
● |
– |
● |
– |
● |
60 |
| T2E 180 x 2.5 x 22 |
– |
● |
● |
● |
– |
30 |
| T2E 180 x 3.2 x 22 |
● |
– |
● |
● |
● |
25 |
| T2E 230 x 2.5 x 22 |
– |
● |
● |
● |
– |
30 |
| T2E 230 x 3.2 x 22 |
● |
– |
● |
● |
● |
25 |
* = Iron- and sulphur-free certification available. A30S: medium/hard grade, general-purpose use on iron and steels. A24S: hard grade, long life even under the most demanding conditions. 9A30S: cutting stainless steels, nuclear and food industries. 00A24T: long life for specialist applications on alloy and stainless steels. C30S: medium/hard grade, cutting building materials in general.
Reinforced small-diameter wheels for portable machines (80 m/s) – Specification T41BF6 rows
| Size Ø × T × Ø (mm) |
Steel A80T |
Stainless* 9A80T / 9A30S |
Steel A46S / A30S |
Stainless* 9A46S / 9A30S |
Pack (pcs) |
| T2E 64 x 2 x 10 |
● |
● |
– |
– |
150 |
| T2E 64 x 6 x 10 |
– |
– |
● |
● |
50 |
| T2E 76 x 2 x 10 |
● |
● |
– |
– |
120 |
| T2E 76 x 3.2 x 10 |
– |
– |
● |
● |
100 |
| T2E 76 x 6 x 10 |
– |
– |
● |
● |
40 |
| T2E 76 x 10 x 10 (13) |
– |
– |
● |
● |
24 |
Speed 80 m/s. * = Iron- and sulphur-free certification available. A80T/A46S/A30S: medium/hard grade, general-purpose use on iron and steels. 9A80T/9A30S/9A46S: cutting (or grinding) stainless steels, nuclear and food industries.
Cut-off wheels for single-phase bench machines – T41BF2 rows
| Size T2E / TRR 41BF Ø × Th × Ø (mm) |
A 36 R |
Pack (pcs) |
| 300x2.8x25 |
● |
30 |
| 350x2.8x25 |
● |
30 |
A36R: fast cutting, medium life, for ferrous and non-ferrous metals.
Cut-off wheels for petrol-driven portable machines – T41BF2 rows
| Size T2E / TRR 41BF Ø × Th × Ø (mm) |
Steel A24S |
Stone C30S |
Pack (pcs) |
| 300x3.5x20 (22-50) |
● |
● |
25 |
| 350x3.5x25 (20-50) |
● |
● |
25 |
Available on request for 100 m/s operating speed. In brackets: available bore sizes. A24S: iron and steel, suitable for cutting rails. C30S: building materials, road works.
Cut-off wheels for fixed machines – T41BF8 rows
| Size Ø × Th × Ø (mm) |
Steel A36R |
Steel A30S |
Steel A24S |
Stainless* 9A30S |
Stone C30S |
Pack (pcs) |
| TRR 250x3.2x25 (16-32) |
– |
● |
– |
– |
● |
60 |
| TRR 300x3.5x30 (16-50) |
● |
● |
● |
● |
● |
25 |
| TRR 300x4.5x30 (16-50) |
– |
● |
– |
– |
– |
25 |
| TRR 350x3.5x40 (20-50) |
● |
● |
● |
● |
● |
25 |
| TRR 400x4x40 (22-50) |
● |
● |
● |
● |
● |
25 |
| TRR 450x4.5x25 (30-50) |
● |
– |
● |
● |
● |
15 |
| TRR 500x5x40 (25-60) |
● |
– |
● |
● |
● |
15 |
| TRR 600x6x60 (25-80) |
● |
– |
● |
● |
● |
10 |
Available on request for 100 m/s operating speed. * = Iron- and sulphur-free certification available. In brackets: available bore sizes. A36R: soft grade (alloy steels, cast iron, non-ferrous metals). A30S: medium/hard grade (iron and common steels). A24S: hard grade (iron and common steels). 9A30S: stainless steels, nuclear and food industries. C30S: medium/hard grade, building materials.
