ITEN

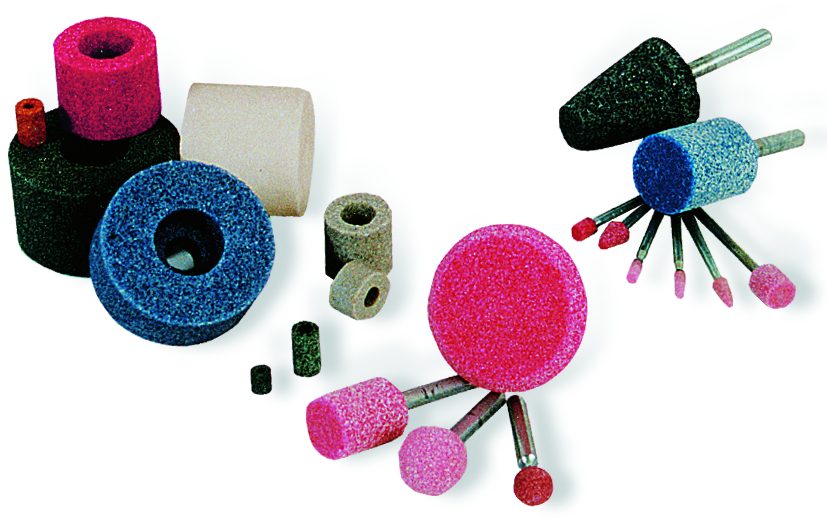

Vitrified, resin and rubber bond
We manufacture vitrified, resin and rubber bond mounted points in every shape; special shanks are also available on request.
Our mounted points are fully precision-ground, which makes them sharper and better balanced.
Ready-made kits of Ø 3 mm mounted points are also available in various sizes, cylindrical and shaped.
Not sure it is the right one? Try the product finder
| Ø mm | Thickness 4 | Thickness 6 | Thickness 8 | Thickness 10 | Thickness 12 | Thickness 15 | Thickness 20 | Thickness 25 | Thickness 30 | Thickness 35 | Thickness 40 | Thickness 45 | Thickness 50 | Thickness 60 | Thickness 70 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 2 | – | 13A100Q5V (P3) | – | – | – | – | – | – | – | – | – | – | – | – | – |
| 3 | – | 13A80Q5V (P3) | 13A80Q5V (P3) | – | – | – | – | – | – | – | – | – | – | – | – |
| 4 | 13A80Q5V (P3) | 13A80Q5V (P3) | 13A80Q5V (P3) | 13A80Q5V (P3) | 13A80Q5V (P3) | – | – | – | – | – | – | – | – | – | – |
| 5 | – | 13A80Q5V (P3) | 13A80Q5V (P3) | 13A80Q5V (P3) | 13A80Q5V (P3) | 13A80Q5V (P3) | – | – | – | – | – | – | – | – | – |
| 6 | – | 13A80Q5V (P3) | 13A80Q5V (P3) | 13A80Q5V (P3) | 13A80Q5V (P3) | 13A80Q5V (P3) | 9A80Q5V (P6) | 9A80Q5V (P6) | – | – | – | – | – | – | – |
| 8 | – | – | 13A80Q5V (P3) | 13A80Q5V (P3) | 13A80Q5V (P3) | 13A80Q5V (P3) | 13A80Q5V (P3/6) | 9A80Q5V (P6) | – | – | – | – | – | – | – |
| 10 | 13A60Q5V (P3) | 13A60Q5V (P3) | 13A60Q5V (P3) | 13A60Q5V (P3/6) | 13A60Q5V (P3/6) | 13A60Q5V (P3/6) | 9A60P5V (P6) | 9A60P5V (P6) | 9A60P5V (P6) | – | – | – | – | – | – |
| 12 | 13A60Q5V (P3) | 13A60Q5V (P3) | 9A60P5V (P6) | 9A60P5V (P6) | 9A60P5V (P6) | 9A60P5V (P6) | 9A60P5V (P6) | 9A60P5V (P6) | 9A60P5V (P6) | – | – | – | – | – | – |
| 15 | 13A60Q5V (P3) | 13A60Q5V (P3) | 9A60P5V (P6) | 9A46P5V (P6) | 9A46P5V (P6) | 9A46P5V (P6) | 9A46P5V (P6) | 9A46P5V (P6) | 9A46P5V (P6) | 9A46P5V (P6) | 9A46P5V (P6) | – | – | – | – |
| 20 | 13A60Q5V (P3) | 9A60P5V (P6) | 9A60P5V (P6) | 9A46P5V (P6) | 9A46P5V (P6) | 9A46P5V (P6) | 9A46P5V (P6) | 9A46P5V (P6) | 9A46P5V (P6) | 9A46P5V (P6) | 9A46P5V (P6) | 9A46P5V (P6) | 9A36/46P5V (P6) | – | – |
| 22 | – | – | – | – | – | – | – | – | – | – | 9A46P5V (P6) | 9A46P5V (P6) | 9A36/46P5V (P6) | – | 9A36/46P5V (P6) |
| 25 | – | 9A60P5V (P6) | 9A60P5V (P6) | 9A46P5V (P6) | 9A46P5V (P6) | 9A46P5V (P6) | 9A46P5V (P6) | 9A46P5V (P6) | 9A46P5V (P6) | 9A46P5V (P6) | 9A46P5V (P6) | – | – | – | – |
| 30 | – | 9A60P5V (P6) | 9A60P5V (P6) | 9A46P5V (P6) | 9A46P5V (P6) | 9A46P5V (P6) | 9A46P5V (P6) | 9A46P5V (P6) | 9A46P5V (P6) | 9A36/46P5V (P6) | 9A36/46P5V (P6) | 9A36/46P5V (P6) | 9A36/46P5V (P6) | – | – |
| 35 | – | – | – | 9A46P5V (P6) | 9A46P5V (P6) | 9A46P5V (P6) | – | – | – | 9A36/46P5V (P6) | 9A36/46P5V (P6) | – | – | – | – |
| 40 | – | 9A60P5V (P6) | 9A60P5V (P6) | 9A46P5V (P6) | 9A46P5V (P6) | 9A46P5V (P6) | 9A36/46P5V (P6) | 9A36/46P5V (P6) | 9A36/46P5V (P6) | 9A36/46P5V (P6) | 9A36/46P5V (P6) | 9A36/46P5V (P6) | 9A36/46P5V (P6) | – | – |
| 45 | – | – | – | 9A46P5V (P6) | 9A46P5V (P6) | 9A46P5V (P6) | – | – | – | – | – | – | – | – | – |
| 50 | – | 9A60P5V (P6) | 9A60P5V (P6) | 9A46P5V (P6) | 9A46P5V (P6) | 9A46P5V (P6) | 9A36/46P5V (P6) | 9A36/46P5V (P6) | 9A36/46P5V (P6) | 9A36/46P5V (P6) | 9A36/46P5V (P6) | 9A36/46P5V (P6) | 9A36/46P5V (P6) | – | – |
| 60 | – | – | – | 9A46P5V (P6) | 9A46P5V (P6) | 9A46P5V (P6) | 9A36/46P5V (P6) | – | – | – | – | – | – | – | – |
| 70 | – | – | – | 9A46P5V (P6) | 9A46P5V (P6) | 9A46P5V (P6) | – | – | – | – | – | – | – | – | – |
Code in the cell = standard production shank: (P3) Ø 3 mm shank; (P3/6) Ø 3 and Ø 6 mm shank; (P6) Ø 6 mm shank.
| Ø mm | Thickness 4 | Thickness 6 | Thickness 8 | Thickness 10 | Thickness 12 | Thickness 15 | Thickness 20 | Thickness 25 | Thickness 30 | Thickness 35 | Thickness 40 | Thickness 45 | Thickness 50 | Thickness 60 | Thickness 70 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 2 | ● | ● (P3) | ● | – | – | – | – | – | – | – | – | – | – | – | – |
| 3 | ● | ● (P3) | ● (P3) | ● | ● | ● | ● | – | – | – | – | – | – | – | – |
| 4 | ● (P3) | ● (P3) | ● (P3) | ● (P3) | ● (P3) | ● | ● | – | – | – | – | – | – | – | – |
| 5 | ● | ● (P3) | ● (P3) | ● (P3) | ● (P3) | ● (P3) | ● | – | – | – | – | – | – | – | – |
| 6 | ● | ● (P3) | ● (P3) | ● (P3) | ● (P3) | ● (P3) | ● | ● (P6) | – | – | – | – | – | – | – |
| 8 | ● | ● | ● (P3) | ● (P3) | ● (P3) | ● (P3) | ● (P3/6) | ● (P6) | – | – | – | – | – | – | – |
| 10 | ● (P3) | ● (P3) | ● (P3) | ● (P3/6) | ● (P3/6) | ● (P3/6) | ● (P6) | ● (P6) | ● (P6) | ● | ● | – | – | – | – |
| 12 | ● (P3) | ● (P3) | ● (P6) | ● (P6) | ● (P6) | ● (P6) | ● (P6) | ● (P6) | ● (P6) | ● | ● | ● | – | – | – |
| 15 | ● (P3) | ● (P3) | ● (P6) | ● (P6) | ● (P6) | ● (P6) | ● (P6) | ● (P6) | ● (P6) | ● (P6) | ● (P6) | ● | ● | – | – |
| 20 | ● (P3) | ● (P6) | ● (P6) | ● (P6) | ● (P6) | ● (P6) | ● (P6) | ● (P6) | ● (P6) | ● (P6) | ● (P6) | ● (P6) | ● (P6) | ● | ● |
| 22 | – | ● | ● | ● | ● | ● | ● | ● | ● | ● | ● (P6) | ● (P6) | ● (P6) | ● | ● (P6) |
| 25 | – | ● (P6) | ● (P6) | ● (P6) | ● (P6) | ● (P6) | ● (P6) | ● (P6) | ● (P6) | ● (P6) | ● (P6) | ● | ● | ● | ● |
| 30 | – | ● (P6) | ● (P6) | ● (P6) | ● (P6) | ● (P6) | ● (P6) | ● (P6) | ● (P6) | ● (P6) | ● (P6) | ● (P6) | ● (P6) | ● | – |
| 35 | – | ● | ● | ● (P6) | ● (P6) | ● (P6) | ● | ● | ● | ● (P6) | ● (P6) | ● | ● | ● | – |
| 40 | – | ● (P6) | ● (P6) | ● (P6) | ● (P6) | ● (P6) | ● (P6) | ● (P6) | ● (P6) | ● (P6) | ● (P6) | ● (P6) | ● (P6) | ● | – |
| 45 | – | ● | ● | ● (P6) | ● (P6) | ● (P6) | ● | ● | ● | ● | ● | ● | ● | ● | – |
| 50 | – | ● (P6) | ● (P6) | ● (P6) | ● (P6) | ● (P6) | ● (P6) | ● (P6) | ● (P6) | ● (P6) | ● (P6) | ● (P6) | ● (P6) | ● | – |
| 60 | – | – | – | ● (P6) | ● (P6) | ● (P6) | ● (P6) | ● | ● | ● | ● | ● | ● | ● | – |
| 70 | – | – | – | ● (P6) | ● (P6) | ● (P6) | ● | ● | ● | ● | ● | ● | ● | ● | – |
● = available. Code in the cell = standard production shank: (P3) Ø 3 mm shank; (P3/6) Ø 3 and Ø 6 mm shank; (P6) Ø 6 mm shank.
| Code | Description |
|---|---|
| 5A | Grey |
| 7A | Light blue |
| 8A | Brick red |
| 9A | Pink |
| 10A | White |
| Code | Description |
|---|---|
| 11A | Monocrystalline |
| 13A | Ruby |
| 5C | Grey silicon carbide |
| 8C | Green silicon carbide |
| 0A | Zirconia |
| Code | Description |
|---|---|
| 5MC | SG Microcrystalline |
| Type |
|---|
| Shaped points |
| Ball points |
| Cylindrical points with bore (with and without recess) |
| Points with special, long or threaded shanks |
| Item | Minimum |
|---|---|
| Standard points | 200 pcs |
| Resin-bond and/or non-standard points | 200 pcs |
Grinding discs for portable grinders

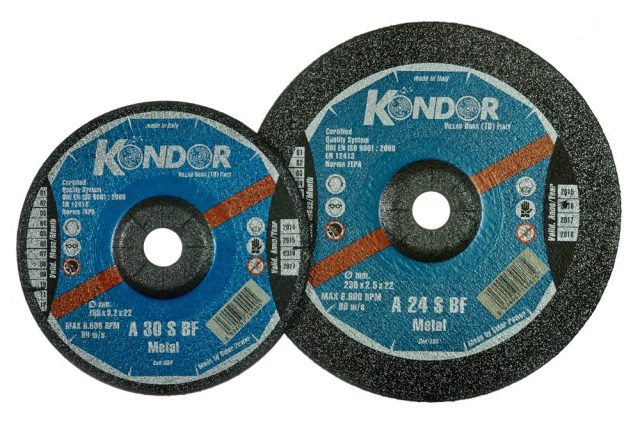

Reinforced depressed centre grinding discs
Reinforced depressed centre discs for grinding with portable grinders: dedicated specifications for iron and steel, stainless steel, cast…
Diamond tools

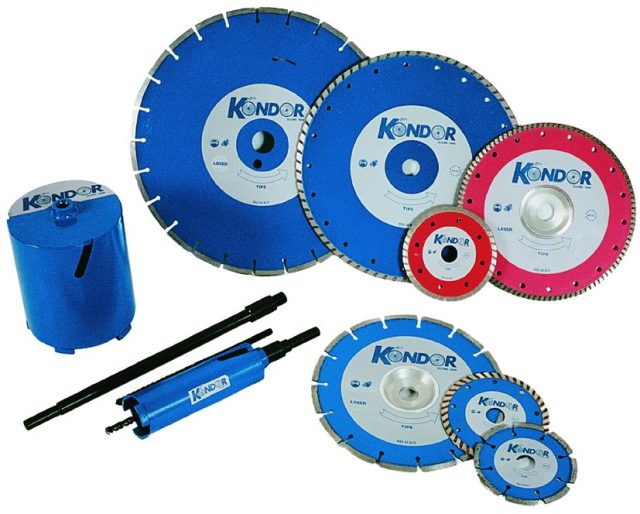

Diamond discs and core bits
