Vitrified and resin bond

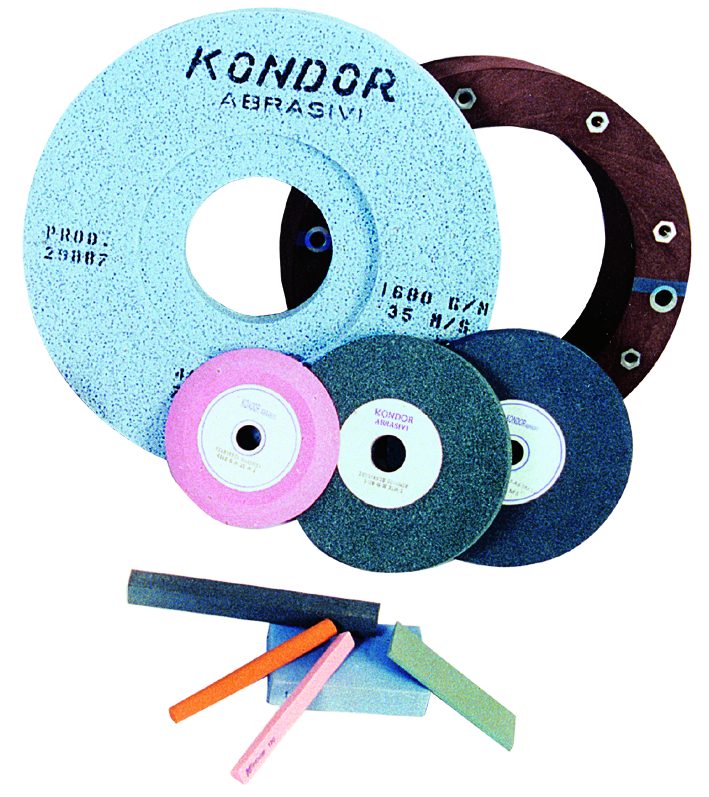

Conventional grinding wheels

A wide range of conventional vitrified and resin bond wheels in a vast array of shapes, profiles and forms: wheels for precision grinding, grinding, deburring and sharpening for the most diverse industrial applications.

On request we also produce files, bricks and segments.

Precision grinding Grinding Deburring Sharpening

Bond: vitrified or resin
Applications: precision grinding, grinding, deburring, sharpening
On request: files, bricks, segments

Request a quote Conventional grinding wheels – catalogue pp. 26, 27, 28

Not sure it is the right one? Try the product finder

Sizes and codes

● available · Special sizes on request

Availability Ø × thickness – thicknesses 7–35 mm16 rows

Ø mm	7	10	13	16	20	22	25	30-32	35
Ø 76	●	●	●	●	●	●	●	●	●
Ø 100	●	●	●	●	●	●	●	●	●
Ø 115	●	●	●	●	●	●	●	●	●
Ø 125	●	●	●	●	●	●	●	●	●
Ø 150	●	●	●	●	●	●	●	●	●
Ø 180	●	●	●	●	●	●	●	●	●
Ø 200	●	●	●	●	●	●	●	●	●
Ø 230	●	●	●	●	●	●	●	●	●
Ø 250	●	●	●	●	●	●	●	●	●
Ø 300	–	–	●	●	●	●	●	●	●
Ø 350	–	–	●	●	●	●	●	●	●
Ø 400	–	–	–	●	●	●	●	●	●
Ø 450	–	–	–	–	●	●	●	●	●
Ø 500	–	–	–	–	●	●	●	●	●
Ø 550	–	–	–	–	●	●	●	●	●
Ø 600	–	–	–	–	●	●	●	●	●

Bench wheels with standard specifications: Ø 100 th. 16 and 20; Ø 125 th. 16 and 20; Ø 150 th. 16, 20, 25, 30-32; Ø 180 th. 20, 25, 30-32; Ø 200 th. 20, 25, 30-32.

Availability Ø × thickness – thicknesses 40–100 mm16 rows

Ø mm	40	45	50	60	65	76	80	90	100
Ø 76	●	●	●	●	●	●	●	●	●
Ø 100	●	●	●	●	●	●	●	●	●
Ø 115	●	●	●	●	●	●	●	●	●
Ø 125	●	●	●	●	●	●	●	●	●
Ø 150	●	●	●	●	●	●	●	●	●
Ø 180	●	●	●	●	●	●	●	●	●
Ø 200	●	●	●	●	●	●	●	●	●
Ø 230	●	●	●	●	●	●	●	●	●
Ø 250	●	●	●	●	●	●	●	●	●
Ø 300	●	●	●	●	●	●	●	●	●
Ø 350	●	●	●	●	●	●	●	●	●
Ø 400	●	●	●	●	●	●	●	●	●
Ø 450	●	●	●	●	●	●	●	●	●
Ø 500	●	●	●	●	●	●	●	●	●
Ø 550	●	●	●	●	●	●	●	●	●
Ø 600	●	●	●	●	●	●	●	●	●

Other sizes, shapes, profiles, grit sizes or speeds available on request.

Abrasive types – codes (key)10 rows

Code	Abrasive	Application
5A	Regular grey aluminium oxide	tough and resistant; general use on iron and low-alloy steels
6A	Mixed grey + white aluminium oxide	softer than 5A; surface grinding of medium-hardness steels or cylindrical grinding of high-hardness steels and engineering cast irons
10A-7A-8A	High-grade 99% Al2O3 aluminium oxide, white (10A), blue (7A), brick red (8A)	general precision grinding
9A	High-grade pink aluminium oxide	precision grinding; tougher than 10A, for alloy steels
13A	High-grade ruby aluminium oxide	high cutting ability; hardened steels with a high degree of hardness
11A	Monocrystalline aluminium oxide	precision grinding and sharpening of high-alloy, high-hardness, heat-sensitive steels
5C	Grey silicon carbide	deburring of hard cast iron, grinding of spheroidal graphite cast iron and non-ferrous materials (brass, rubber, stone, plastic, etc.)
8C	Green silicon carbide	very hard, friable and sharp; cemented carbide, ceramics, glass, bronze and aluminium
0A	Zirconia	resin bond wheels only; deburring of cast iron and steels
MC	SG microcrystalline aluminium oxide	blended with 7A or 11A in various percentages, for high-performance grinding

Specification – example1 row

Example	Abrasive	Grit	Grade	Structure	Bond
7A-46-H-12-V	7A	46	H	12	V

Abrasive type11 rows

Code	Abrasive type
5A	Grey aluminium oxide
6A	Mixed grey / white aluminium oxide
7A	Blue aluminium oxide
8A	Brick-red aluminium oxide
9A	Pink aluminium oxide
10A	White aluminium oxide
11A	Monocrystalline aluminium oxide
13A	Ruby aluminium oxide
5C	Grey silicon carbide
8C	Green silicon carbide
0A	Zirconia (resin bond only)

MC super abrasive specifications8 rows

Code	Composition
1MC/7A	10% MC + 7A
2MC/7A	20% MC + 7A
3MC/7A	30% MC + 7A
5MC/7A	50% MC + 7A
1MC/11A	10% MC + 11A
2MC/11A	20% MC + 11A
3MC/11A	30% MC + 11A
5MC/11A	50% MC + 11A

Grit size3 rows

Grits	Class
14-16-20-24	Coarse
30-36-46-54-60	Medium
80-100-120-150	Fine

Structure4 rows

Structure	Class
1-2-3-4	Closed
5-6-7	Normal
8-9-10	Open
11-12-13-14	Very open

Grade (hardness)5 rows

Grades	Class
E-F-G	Very soft
H-I-J-K	Soft
L-M-N-O	Medium
P-Q-R-S	Hard
T-U-V	Very hard

Bond2 rows

Code	Bond
V	Vitrified (Max: 35 m/s)
B	Resin (Max: 50 m/s)

Abrasives8 rows

Abrasive	MC abrasive
5A	1MC/7A
6A	2MC/7A
7A-8A	3MC/7A
9A-10A	5MC/7A
11A-8C	1MC/11A
13A	2MC/11A
5C	3MC/11A
0A	5MC/11A

Standard shapes and profiles7 rows

Shape/profile
Disc with 1 recess
Straight and tapered cup
Knife-edge
With standard profiles
Disc with 2 recesses
Dish
With hardened edge

Bench wheels in 5A/9A/10A/8C abrasive with standard specifications: minimum order 10pcs

Photo gallery

Related products

Diamond tools Diamond discs and core bits Turbo, segmented and thin diamond discs for ceramics, for dry and wet use; core bits for dry core…

Grinding discs for portable grinders Reinforced depressed centre grinding discs Reinforced depressed centre discs for grinding with portable grinders: dedicated specifications for iron and steel, stainless steel, cast…

Bandsaw blades Bandsaw blades for metal Bimetal HSS M42 and M51, carbide and carbon steel bandsaw blades in every tooth pattern, welded to size.

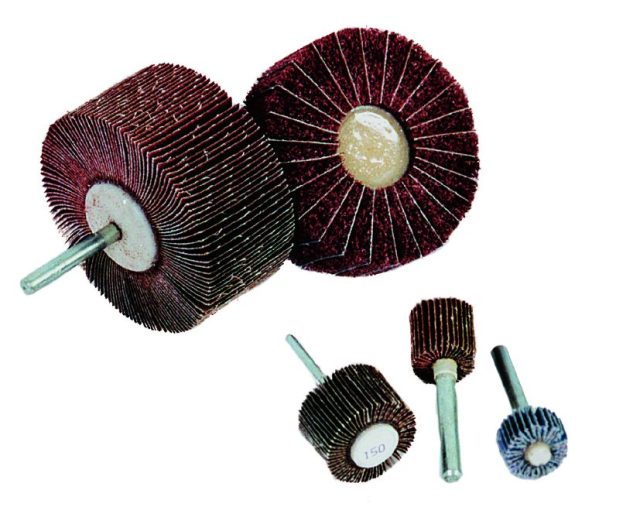

Flap wheels Mounted flap wheels and flap wheels with bore Abrasive cloth flap wheels mounted on shanks for straight grinders, and with bore for polishing and satin finishing…
