ITEN
Wheels and discs for railway track maintenance

Railway sector

Wheels and discs for railway track maintenance

Abrasive discs and wheels for railway track maintenance: wheels for rail grinding, cylindrical wheels for tangential grinding and rail cut-off discs for guided machines. We also produce special and custom products on request.

All specifications are also available in zirconia.

Rail grinding Rail cutting Grooving
Bond
resin
Speed
from 40 to 100 m/s
Abrasive
aluminium oxide or zirconia
Supply
specials also available on request
Request a quote Products for the railway sector

Not sure it is the right one? Try the product finder

Sizes and codes

● available · Special sizes on request

Sizes and codes19 rows
Type Size (mm) Fitting Specification Speed
TCI – cylindrical cup wheel Ø 127 × 63 × 32 – 5A16RB 50 m/s
MDA – ring wheel with 4 threaded holes Ø 150 × 73 × 57 4 × M8 5A14R5B 50 m/s
MDA – cylindrical cup wheel with threaded fitting Ø 150 × 73 (80) 1 × M20 right, M20 left or 5/8" UNC 5A14R5B 50 m/s
MDA – cylindrical cup wheel with threaded fitting Ø 100 × 110 1 M20 right/left nut ZA16P5B 50 m/s
2BI – shaped wheel with 2 recesses Ø 130 × 90 × 25.4 – 5A16RB 40 m/s
2BI – shaped wheel with 2 recesses Ø 127 × 90 × 25.4 – 5A16RB 40 m/s
CIL – cylindrical wheel Ø 160 × 25 × 25 – 5A24RB 50 m/s
CIL – cylindrical wheel Ø 230 × 23 × 22 – 5A16SB 63 m/s
CIL – cylindrical wheel for tangential grinding Ø 350 × 25 × 127 – 6A20S5B 50 m/s
CIL – cylindrical wheel for tangential grinding Ø 350 × 35 × 127 – 6A16Q5B 50 m/s
CIL – cylindrical wheel for tangential grinding Ø 350 × 40 × 127 – 6A16Q5B 50 m/s
CIL – cylindrical wheel for tangential grinding Ø 350 × 60 × 127 – 6A16Q5B 50 m/s
CIL – cylindrical wheel Ø 260 × 15 × 120 – 5A16RB 63 m/s
CIL – cylindrical wheel Ø 260 × 25 × 120 – 5A16RB 63 m/s
CIL – cylindrical wheel with 1 recess Ø 166 × 12 Ø 254 × 40 × 76 – 5A16RB 50 m/s
CIL – cylindrical wheel with 2 recesses Ø 166 × 12 Ø 254 × 40 × 76 – 5A16RB 50 m/s
T2E – rail cut-off disc Ø 350 × 4 × 25.4 or 22 – A24TBF 100 m/s
TRR – rail cut-off disc Ø 400 × 4.5 × 25.4 or 22 – A24TBF 100 m/s
TRR – grooving Ø 300 × 6.4 × 20 – 5A24QBF 100 m/s

Photo gallery

MDA – wheels with threaded fitting
MDA – wheels with threaded fitting
T2E / TRR – rail cut-off disc
T2E / TRR – rail cut-off disc
TCI – cylindrical cup wheel
TCI – cylindrical cup wheel

Related products

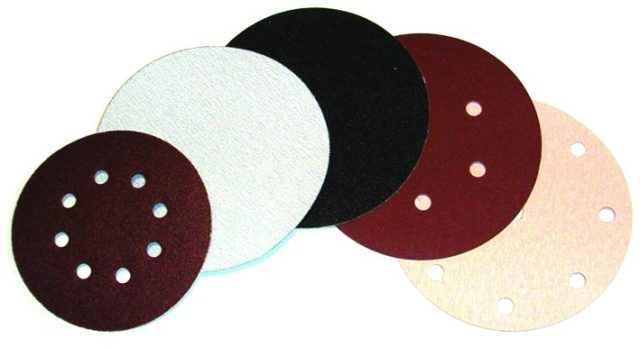

SRP and SRS semi-rigid abrasive discs Semi-rigid discs SRP and SRS semi-rigid abrasive discs For fast stock removal with an angle grinder, even on very hard materials or materials that tend to… Thin flat reinforced cut-off wheels Thin cut-off wheels · 9A80T, Ice Line, W30P, Stone Thin flat reinforced cut-off wheels Thin cut-off wheels from 1 to 1.6 mm for metals, stainless steel, aluminium, wood and plastic, stone and… Metal Cutting Kit Air grinder kit with Ø 76 mm discs Metal Cutting Kit Small size, big expectations: a compact air grinder with Ø 76 mm cutting and grinding discs, for one-handed… Paper abrasives: hook-and-loop discs, sheets and rolls Abrasive paper Paper abrasives: hook-and-loop discs, sheets and rolls Hook-and-loop discs with and without holes, sheets, rolls and mini rolls for sanding sheet metal, fillers, primers, enamels,…
