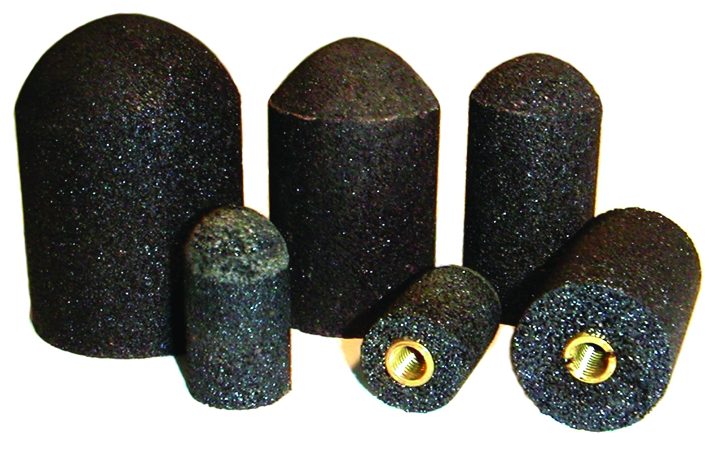

Pinecone wheels, cup wheels and non-reinforced cut-off wheels

Resin bond wheels

Pinecone wheels, cup wheels and non-reinforced cut-off wheels

Our resin bond range also includes cup, cylindrical and tapered wheels, with or without recesses, used mainly in foundries and in the railway sector, as well as threaded-bore pinecone wheels for straight grinders.

Most of these wheels are designed to customer specification; some types have now become standard.

Non-reinforced cut-off wheels

For many years we have been producing non-reinforced resin bond cut-off wheels for burn-free cutting of metallographic specimens, wet or dry. In addition to the catalogue items, we make many types to customer specification.

Grinding Foundry Railway
Shapes
cup, cylindrical, tapered, pinecone
Pinecone wheel fitting
threaded bore
Cut-off wheels
wet or dry
Supply
also to customer specification
Request a quote Pinecone wheels and non-reinforced cut-off wheels – catalogue p. 10

Not sure it is the right one? Try the product finder

Sizes and codes

● available · Special sizes on request

Zirconia pinecone wheels with threaded bore8 rows
Size Ø x Height (mm) Available threads 0A 20 SB Minimum order (pcs)
Pig 25 x 50 M8 - M10 ● 200
Pig 32 x 60 M10 - 3/8" ● 200
Pig 38 x 63 M10 - M14 - 3/8" - 5/8" ● 150
Pig 38 x 76 M14 - 3/8" - 5/8" ● 150
Pig 38 x 90 M14 - 3/8" - 5/8" ● 150
Pig 48 x 80 M14 - M16 - 5/8" ● 100
Pig 64 x 76 M14 - M16 - 5/8" - 1/2" ● 100
Pig 64 x 90 M14 - M16 - 5/8" - 1/2" ● 100

For applications on Steel, Cast iron, Stainless steel. Specifications, threads and sizes other than those shown in the table available on request.

Non-reinforced abrasive cut-off wheels – Ø × thickness (mm)9 rows
Ø (mm) Th. 1.0 Th. 1.2 Th. 1.6 Th. 2.0 Th. 2.5 Th. 3.0 Th. 3.5 Available bores Ø mm
Ø 125 ● – ● – – – – 13-16-20
Ø 150 ● – ● ● ● ● – 13-16-20-22-30
Ø 180 – – ● ● ● – – 20-22-25-30-32
Ø 200 – ● ● ● ● ● – 16-20-22-25-32
Ø 230 – ● ● ● ● – – 20-22-25-32
Ø 250 – – ● ● ● – – 16-20-22-25-32
Ø 300 – – – ● ● ● – 20-22-25-32
Ø 350 – – – – ● ● – 20-22-25-32
Ø 400 – – – – – ● ● 22-25-30-32

For cutting metallographic specimens on stationary machines. Use: dry/wet. Max 50 m/s (higher speeds permitted only on fully guarded machines). Do not use on portable machines. Abrasives: A = Aluminium oxide for standard steels; 6A = for cast irons and alloy steels; 10A = for hard steels/Stainless steel. Grits and grades depend on the type of application and the disc size.

Photo gallery

Cup and cylindrical wheels
Cup and cylindrical wheels
Non-reinforced cut-off wheels
Non-reinforced cut-off wheels
Pinecone wheels on a straight grinder
Pinecone wheels on a straight grinder
