Flap wheels

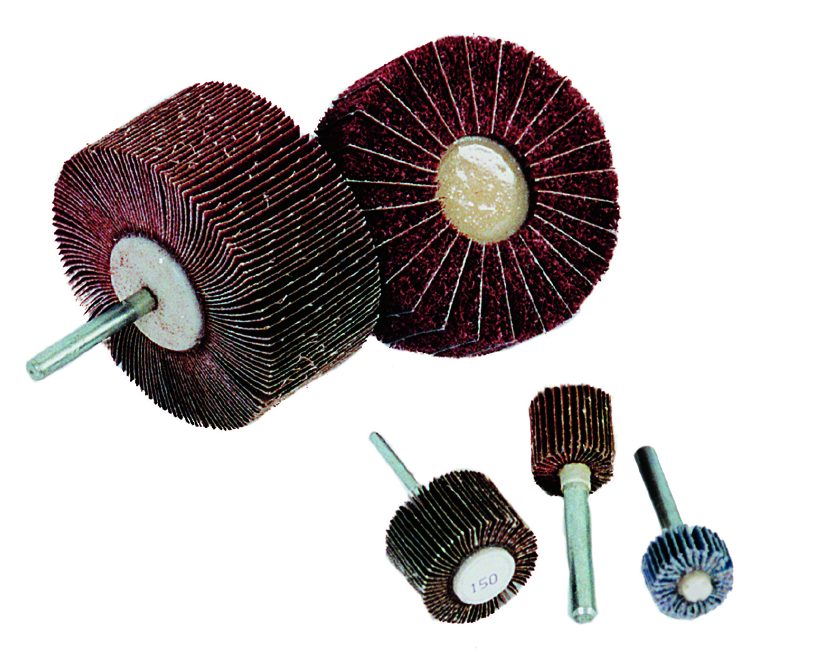

Mounted flap wheels and flap wheels with bore

Our flap wheels are made mainly from European-made aluminium oxide and zirconia cloths; other cloths on request.

Mounted on shank

Abrasive cloth flaps bonded to a resin core and mounted on a shank for straight grinders. For deburring and finishing flat and contoured metal surfaces. Also available in non-woven or mixed versions, with alternating layers of non-woven and cloth.

With bore

A ring of flaps arranged radially around the bore, for bench polishing machines and portable electric or pneumatic satin finishers. Also available in flexible J-flex cloth, silicon carbide, non-woven or mixed versions.

Non-catalogue sizes on request.

Deburring Finishing Satin finishing

Cloths: aluminium oxide, zirconia, J-flex, silicon carbide
Versions: mounted on shank, with bore, non-woven, mixed

Request a quote Mounted flap wheels and flap wheels with bore – catalogue pp. 19, 20

Not sure it is the right one? Try the product finder

Sizes and codes

● available · Special sizes on request

Mounted flap wheels in abrasive cloth – sizes, grits, speeds34 rows

Ø (mm)	Thickness (mm)	Shank Ø (mm)	40	60	80	120	180	240	320	Max rpm	Pack (pcs)
22/25	5	3/6	●	●	●	●	●	●	●	23,000	50
22	10	3/6	●	●A	●A	●A	●A	●	●	23,000	50
22	15	3/6	●	●	●	●	●	●	●	23,000	50
22	20	3/6	●	●A	●A	●A	●	●	●	23,000	50
25	10	3/6	●	●	●	●	●	●	●	22,000	50
25	15	3/6	●	●A	●A	●	●	●	●	22,000	50
25	20	3/6	●	●A	●A	●	●	●	●	22,000	50
30	5	3/6	●	●A	●A	●A	●	●	●	22,000	50
30	10	3/6	●A	●A	●A	●A	●A	●A	●A	22,000	50
30	15	3/6	●AZ	●AZ	●AZ	●AZ	●A	●A	●A	22,000	50
30	20	3/6	●AZ	●AZC	●AZ	●AZ	●	●	●	22,000	50
30	30	3/6	●A	●A	●A	●A	●	●	●	22,000	50
40	5	6	●	●	●	●	●	●	●	17,000	30
40	10	6	●A	●A	●A	●A	●A	●A	●A	17,000	30
40	15	6	●A	●A	●A	●A	●	●	●	17,000	30
40	20	6	●AZ	●AZ	●AZ	●AZ	●A	●A	●A	17,000	30
40	30	6	●AZ	●AZC	●AZ	●AZ	●A	●	●	17,000	30
50	10	6	●A	●A	●A	●A	●	●	●	13,000	30
50	15	6	●A	●A	●A	●A	●A	●A	●	13,000	30
50	20	6	●AZ	●AZ	●AZ	●AZ	●A	●A	●	13,000	30
50	25	6	●	●	●	●	●	●	●	13,000	30
50	30	6	●AZ	●AZC	●AZ	●AZ	●	●	●	13,000	30
60	10	6	●	●	●	●	●A	●A	●	11,000	30
60	15	6	●A	●A	●A	●A	●A	●A	●	11,000	30
60	20	6	●A	●A	●A	●A	●A	●A	●	11,000	30
60	25	6	●	●	●	●	●	●	●	11,000	30
60	30	6	●AZ	●AZC	●AZ	●AZ	●A	●A	●A	11,000	30
60	40	6/8	●A	●A	●A	●A	●A	●	●	11,000	30
60	50	6/8	●A	●A	●A	●A	●	●	●A	11,000	30
80	15	6/8	●	●	●	●	●	●	●	8,000	30
80	20	6/8	●A	●A	●A	●	●	●	●	8,000	30
80	30	6/8	●A	●AZ	●AZ	●A	●A	●A	●A	8,000	30
80	40	6/8	●A	●A	●A	●A	●A	●A	●	8,000	30
80	50	6/8	●A	●A	●A	●A	●A	●A	●A	8,000	30

All sizes are available in all grits (●). Standard items: ●A = aluminium oxide; ●AZ = aluminium oxide and zirconia; ●AZC = aluminium oxide, zirconia and ceramic.

Flap wheels in 3M Trizact and other materials available on request. Non-standard wheels and non-catalogue sizes available on request.

Abrasive key: A - Brown aluminium oxide, for iron and standard steels. Z - Blue zirconia, for stainless steel and alloy steels. Cer - Ceramic-enhanced aluminium oxide, for heavy-duty work on stainless steel, alloy steels and non-ferrous materials; high performance, long life.

Abrasive cloth flap wheels with bore – sizes and grits11 rows

Ø (mm)	Thickness (mm)	Bore Ø (mm)	40	50	60	80	100-120	150-180	220-280	320-400
100	30	25	●	●	●	●	●	●	●	●
*100	50	25/19c	●	●	●	●	●	●	●	●
*100	100	25/19c	●	●	●	●	●	●	●	●
165	30	30/54	●	●	●	●	●	●	●	●
165	50	30/54	●	●	●	●	●	●	●	●
200	30	54	●	●	●	●	●	●	●	●
200	50	54	●	●	●	●	●	●	●	●
250	30	100	●	●	●	●	●	●	●	●
250	50	100	●	●	●	●	●	●	●	●
300	50	100	●	●	●	●	●	●	●	●
300	75	100	●	●	●	●	●	●	●	●

* Flap wheels for portable satin finishing machines – bore Ø19+C. Flap wheels with sizes or features not listed in the table: prices on request. Aluminium reducing flanges available on request.

Abrasive key: A - Brown aluminium oxide, for iron and standard steels. Z - Blue zirconia, for stainless steel and alloy steels. C - Silicon carbide (black), for marble, stone and clogging non-ferrous metals.

Non-woven flap wheels for portable satin finishing machines2 rows
