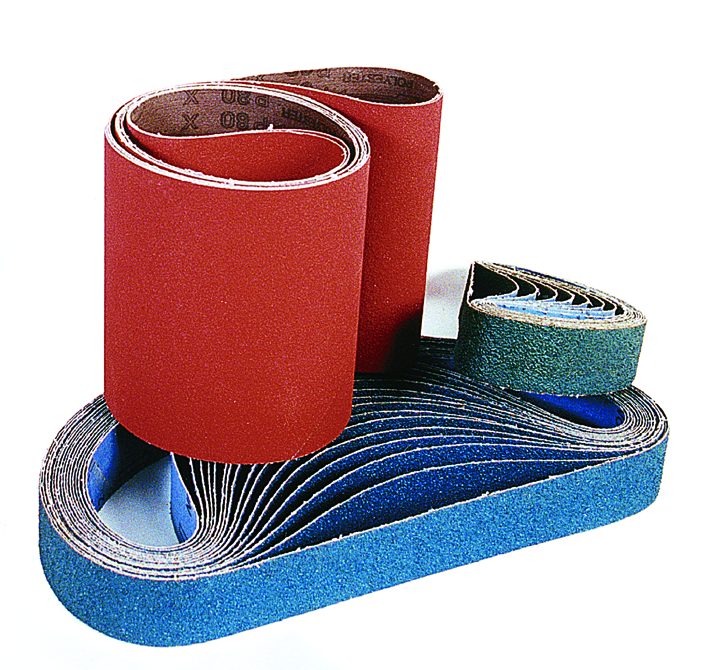

Belts, rolls, sheets and discs

Custom-made abrasive cloth

Belts, rolls, sheets and discs

We make abrasive belts in any size from the best cloths, for the widest range of applications and with fast delivery times.

On request: rolls, sheets, discs and other formats, including non-woven belts.

Sanding Finishing
Sizes
any, on request
Formats
belts, rolls, sheets, discs
Request a quote Cloth belts, rolls and sheets – catalogue p. 21

Not sure it is the right one? Try the product finder

Sizes and codes

● available · Special sizes on request

Cloth belts and rolls – grit availability6 rows
Type 24 36 40 50 60 80 100+
XA517 ● ● ● ● ● ● ●
PA631 ● ● ● ● ● ● ●
JA512 – – – – ● ● ●
KZ563 ● ● ● ● ● ● ●
PZ633/628 ● ● ● ● ● ● ●
PS992 ● ● ● ● ● ● ●

Joints (abrasive belts only): N = Normal, overlap splice; TT = Butt joint with special film

Surface Conditioning (Low Stretch) – grit availability1 row
Type A - Coarse A - Medium A - Very Fine S/Ultra Fine
Surf. Cond. Low Stretch ● ● ● ●

Hi-Flex type available. Joints (abrasive belts only): TT = Butt joint with special film

Rolls – KA 1641 row
Sizes (mm x m) 40 50 60 80 100 120 150-400 Pack
RTE 115x50 ● ● ● ● ● ● ● 4
Sheets – KA 1641 row
Sizes (mm x m) 40 50 60 80 100 120 150-400 Pack
FTE 230x280 ● ● ● ● ● ● ● 100 X 3
Technical features and applications8 rows
Type Backing Bond Abrasive Applications
KA 164 Cotton, J-Flex weight R/R Al.Ox., Grits 24-400 Dry use, Hand use, For metal/wood
XA517 Polyester / Cotton, X weight R/R Al.Ox., Grits 24-400 Dry use, For iron/steels/stainless steel/hardwood
PA631 Polyester, Y weight R/R Special Al.Ox., Grits 24-600 Dry and wet use, For iron/steels/stainless steel/Ni-Co alloys/Al-Zn castings
JA512 Polyester / Cotton, J-Flex weight R/R Special Al.Ox., Grits 60-600 Dry use, For stainless steel/carbon steels/Al alloys/hardwood
KZ563 Cotton, X weight R/R Zirconia, Grits 24-120 Dry use, For iron/steels/stainless steel
PZ633 (PZ628) Polyester, Y weight; PZ 628 YY weight R/R Special zirconia, Grits 24-120 Dry and wet use, For steels/stainless steel/alloys
PS992 Polyester, Y weight R/R Ceramic-coated Al.Ox., Grits 24-120 Dry use, For steels/stainless steel/alloys
Surface Conditioning Non-woven, Low-stretch type – – Surface finishing, For steels/stainless steel/alloys

Photo gallery

Custom belts
Custom belts
Cloth sheets and rolls
Cloth sheets and rolls
