Flap discs · double and single flap

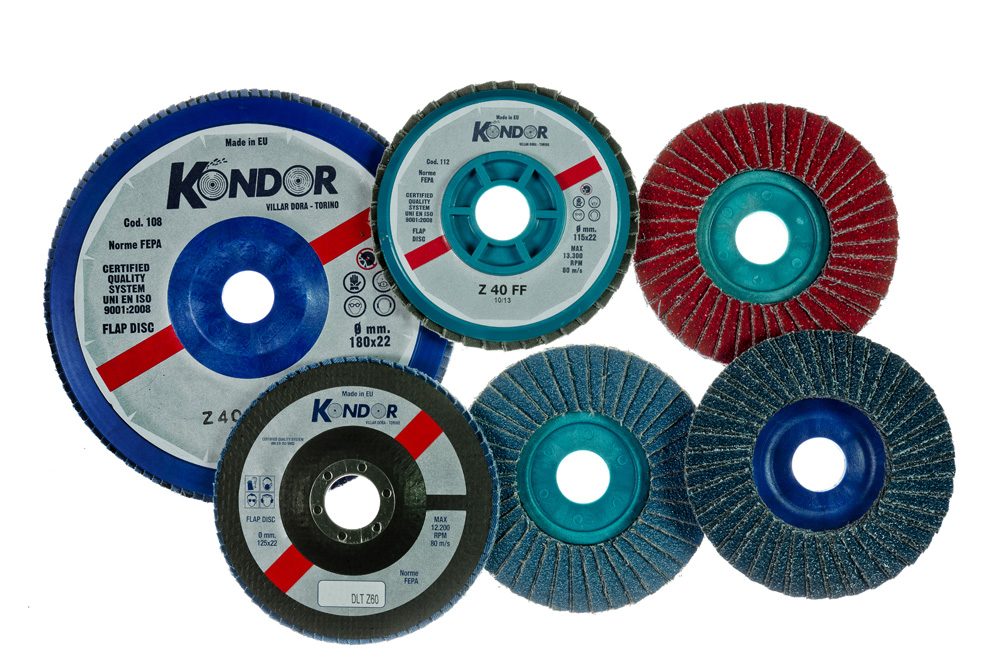

Flap discs

Flap discs were the first flexible abrasives developed in-house at Kondor. Nylon or fibreglass backing, double or single flap, flat version or, on request, conical.

Double flap

For professional and industrial use. Cloths in aluminium oxide, zirconia, mixed ceramic aluminium oxide and microcrystalline with additives. More and larger flaps than conventional discs, for longer life and higher performance.

Single flap

Traditional construction, in two lines for semi-professional and DIY use:

RED TECH LINE: red backing plate, aluminium oxide or zirconia cloth. The right balance between quality and price.
EKO LINE: black backing plate, aluminium oxide or zirconia cloth. The economy line.

Special flap discs

T45/C: high performance, 90 double zirconia flaps.
XL: reinforced fibreglass backing, 120 high-zirconia flaps concentrated on the outer diameter: high stock removal and less wasted cloth.
DSM-Z: 115 mm depressed centre reinforced disc with a ring of double zirconia flaps. Fast stock removal at about 45°, finishing at about 20°.

Satin finishing Finishing Grinding

Backing: nylon or fibreglass
Flap: double or single
Shape: flat, conical on request
Cloths: aluminium oxide, zirconia, ceramic

Request a quote Flap discs – catalogue pp. 11, 12, 13

Not sure it is the right one? Try the product finder

Sizes and codes

● available · Special sizes on request

DLM - L/Blu – Depressed centre nylon backing3 rows

Ø × bore (mm)	A (grits 36-40-50-60-80-120)	Z (grits 36-40-50-60-80-120)	Pack (pcs)
115x22	●	●	20
125x22	●	●	20
180x22	●	●	20

Double-flap construction

DLM - F/Green – Professional nylon backing2 rows

Ø × bore (mm)	A (grits 36-40-50-60-80-120)	Z (grits 36-40-50-60-80-120)	Cer45 (grit 45)	MC (grits 40-60)	Pack (pcs)
115x22	●	●	●	●	20
180x22	●	●	●	●	20

Heavy-duty double-flap construction

DLT – Depressed centre fibreglass backing3 rows

Ø × bore (mm)	A (grits 36-40-50-60-80-120)	Z (grits 36-40-50-60-80-120)	Cer45 (grit 45)	MC (grits 40-60)	Pack (pcs)
115x22	●	●	●	●	20
125x22	●	●	–	–	20
180x22	●	●	●	●	20

Double-flap construction

Abrasive key4 rows

Code	Abrasive	Application
A	Brown aluminium oxide	For use on iron and standard steels
Z	Blue zirconia	For use on stainless steel, alloy and non-alloy steels, cast iron. Long life, excellent cutting ability
Cer45	Mixed zirconia / ceramic aluminium oxide	Excellent performance and versatility on stainless steel, iron and alloy steels
MC	Microcrystalline with additives	Very high performance and low heat build-up on stainless steel and hard steels, excellent on aluminium alloys and non-ferrous metals

DLM - Red Tech – Depressed centre nylon backing3 rows

Ø × bore (mm)	A (grits 36-40-60-80)	Z (grits 36-40-60-80-120)	Pack (pcs)
115x22	●	●	20
125x22	●	●	20
180x22	●	●	20

Single-flap construction

DLT - Red Tech – Depressed centre fibreglass backing3 rows

Ø × bore (mm)	A (grits 36-40-60-80)	Z (grits 36-40-60-80-120)	Pack (pcs)
115x22	●	●	20
125x22	●	●	20
180x22	●	●	20

Single-flap construction. A - Brown aluminium oxide: for use on iron and standard steels. Z - Blue zirconia: for use on stainless steel, alloy and non-alloy steels, cast iron. Long life, excellent cutting ability.

DLM - EKO/Black – Depressed centre nylon backing1 row

Ø × bore (mm)	Z (grits 36-40-60-80-120)	Pack (pcs)
115x22	●	20

Single-flap construction

DLT - Eko/Black – Depressed centre fibreglass backing1 row

Ø × bore (mm)	Z (grits 36-40-60-80-120)	Pack (pcs)
115x22	●	20

Single-flap construction. Z - Blue zirconia: for use on iron, stainless steel, alloy and non-alloy steels, cast iron.

DLM – Depressed centre nylon backing2 rows

Ø × bore (mm)	M 14 -TURBO (Z 40-60-80-120)	T45/C (Z 40-60-80)	Pack (pcs)
115xM14	●	–	20
115x22	–	●	20

Double-flap construction. M 14 - TURBO: new backing plate with threaded bore for quick, flangeless mounting, with fins angled for a turbo extraction effect. T45/C: high-performance flap disc with 90 flaps made from two types of zirconia cloth, reinforced nylon backing.

DLT – Depressed centre fibreglass backing1 row

Ø × bore (mm)	XL (Z 40 - 60)	KW455 (Z 40 - 60)	Pack (pcs)
115x22	●	●	20

Single-flap construction. XL: excellent performance on stainless and other steels thanks to a large number of zirconia flaps distributed around the periphery; oversized backing. KW455: flap disc with special zirconia cloth for stainless and other steels, for heavy-duty work (high stock removal, long life on irregular surfaces, edges and ridges).

DSM-Z – T27BF depressed centre reinforced disc with flaps1 row
